E-RBD Series Resin-Bonded Microfiber Graded Density Filter Cartridges
Endoer E-RBD series resin-bonded microfiber cartridges have a true graded density matrix to provide effective particulate filtration for a wide range of industrial fluids. The dual-zone construction features a rigid inner core ...
Endoer E-RBD series resin-bonded microfiber cartridges have a true graded density matrix to provide effective particulate filtration for a wide range of industrial fluids. The dual-zone construction features a rigid inner core overlaid with a spiral-wrapped prefilter zone. The result is a cartridge of high strength, high particulate capacity, and long service life. Available in a range of nominal ratings.
Features
- Graded density for high particulate capacity
- Dual-zones for strength & effective filtration performance
- Multiple nominal ratings offered for targeted retention efficiency
Applications
- Oil, gas, & petrochemical fluids
- Paints, inks, coatings, & adhesives
- Emulsions, plasticizers, & waxes
- Not for use with potable water or food products
Product Quality
- Manufactured within an ISO 9001:2015 certified quality management system
- Certificate of Quality available upon request for each product lot.
Materials of Construction
| Media: | Acrylic & polyester microfiber |
| Binder: | Phenolic resin |
Dimensions
| Diameter: | 64mm (2.5") |
| Lengths: | 9.75", 10”, 19.5", 20”, 29.25", 30”, 39", 40” |
Operating Conditions
| Operating Temperature: | 120°C (250°F) max. |
| Operating dP (max.): | 8.3 bar (120 psi) @ 27°C (80°F) 4.1 bar (60 psi) @ 83°C (180°F) |
| Change-Out dP: | 3.5 bar (50 psi) maximum |

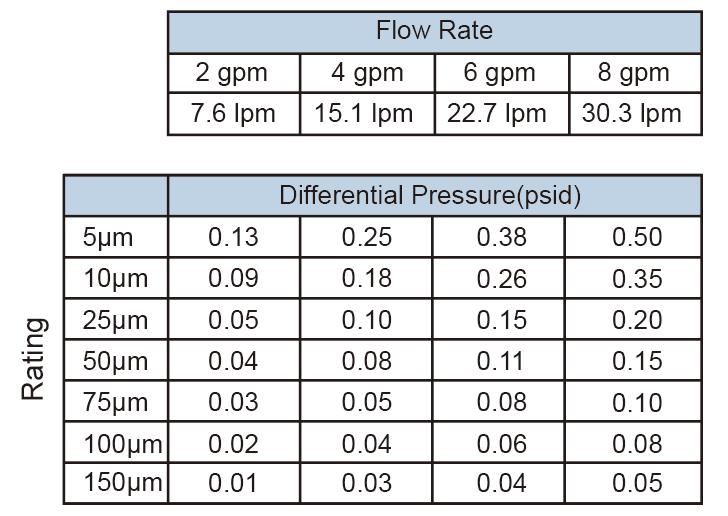

Clean Pressure Drop
Pressure drop values are based on a 10” length cartridge.
For other cartridge lengths, the flow rate increases proportionally for a given pressure drop.
Ordering Information
