E-SSAN Series Single Cartridge Sanitary Filter Cartridge Housings – “T” Type
Manufactured of AISI304 or AISI316 stainless steel with an extraordinary degree of surface polish. The sanitary design includes TC-type fittings and offers smooth, crevice-free surfaces. Easy to disassemble and presents the ult...
Manufactured of AISI304 or AISI316 stainless steel with an extraordinary degree of surface polish. The sanitary design includes TC-type fittings and offers smooth, crevice-free surfaces. Easy to disassemble and presents the ultimate in cleanability. Accept standard 2.5” to 3”OD filter cartridges. These are the standard choice in laboratory or low-flow rate usage in the pharmaceutical, bio-technology, and food/beverage industries.
Features
- Ultra-high degree of polishing: Internal: Ra ≤ 0.3μm , External: Ra ≤ 0.4μm
- Highest degree of cleanability
- Strengthened closure allows 150 psi (10 bar) operation
- Heavy-duty legs provide stability and ruggedness
- Suitable for Clean-in-Place and Steam-in-Place processes
- Standard models are provided with 1/2"TC drain and vent side ports
Applications
- Pharmaceuticals: filtration of injectables, LVPs, water for injection, antibiotics, and other biological products
- Laboratory water, ultra-high purity water
- Food and beverage: filtration of beer, wine, distilled spirits, juices, syrups
Product Quality
- Manufactured within an ISO 9001:2015 certified quality management system
- Certification of Quality document can be provided upon request
Materials of Construction
| Shell Components | AISI304 or AISI316L Stainless Steel |
| Seal Options | SILICONE, EPDM, FKM |
Surface Finish
| Surface Quality | Internal: Ra ≤ 0.3μm External: Ra ≤ 0.4μm |
| Finish, internal | Mechanical Polishing, Electropolishing |
| Finish, external | Mechanical Polishing |
Operating Conditions
| Operating Temperature: | 150°C (302°F) max. |
| Design Pressure | 10 bar (150 psi) |
Clean Pressure Drop

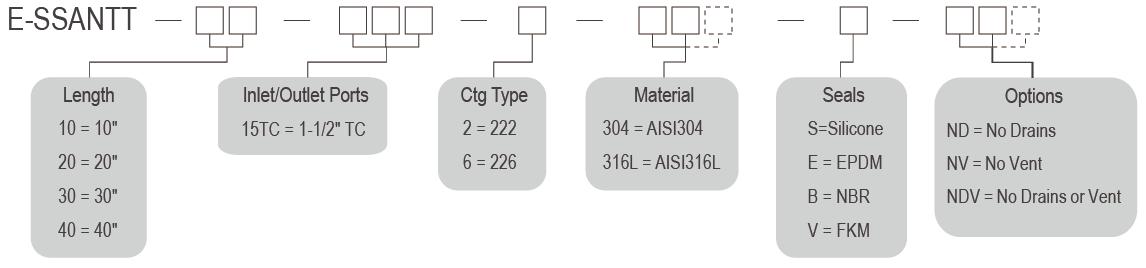

Ordering Information
