MicroDoer™ PA-S Series Electronics Grade Nylon Pleated Filter Cartridges
MicroDoes PA-S Series nylon 66 (PA) pleated filter cartridges provide micronic and submicronic particulate retention for specific use in the microelectronics manufacturing industry. This series receives an extended rinse with u...
MicroDoes PA-S Series nylon 66 (PA) pleated filter cartridges provide micronic and submicronic particulate retention for specific use in the microelectronics manufacturing industry. This series receives an extended rinse with ultrapure water to assure minimized extractable substances and a short rinse-up period.
Being naturally hydrophilic, cartridges allow for fast and easy wetting in aqueous fluids. The optional positive zeta potential surface charge allows retention of particulate much finer than the stated rating.
Features
- Durable nylon membrane and polypropylene components
- Naturally hydrophilic for fast & easy wetting
- "Z" surface charge option improves retention of haze, colloids, and endotoxins
- Extended UPW rinse for purity and cleanliness
Applications
- Ultra-high purity water systems
- Electronics rinse water
- Resin trap filter
Product Quality
- Individual elements are identified by serial number.
- Produced in a clean-room environment for product purity & cleanliness.
- Manufactured within an ISO 9001:2015 certified quality management system.
- Each filter element is inspected for compliance with requirements for manufactured cartridge integrity.
Materials of Construction
Media: | Nylon 66 |
Support Layers: | Polypropylene |
Cage/Core/End Caps: | Polypropylene |
Adapter Reinforcement: | Polysulfone or Stainless Steel |
Seal Options: | Silicone, NBR, EPDM, FKM, E-FKM |
Dimensions
Diameter: | 69mm (2.72") |
Lengths: | 10”, 20”, 30”, 40” |
Operating Conditions
Operating Temperature: | 80°C (176°F) max. |
Operating dP (max.): | 4 bar (58 psi) @ 20°C (68°F),2 bar (29 psi) @ 80°C (176°F) |
Change-Out dP: | 2.6 bar (38 psi) @ 20°C (68°F) |
Extractables, typical | |
Per 10” element: | ﹤20mg non-dissolved solids |
Clean Pressure Drop

Pressure drop values are based on a 10"length cartridge.
For other cartridge lengths,the flow rate increases proportionally for a given pressure drop.
For dP data for ratings not shown,please contact your Endoer representative.

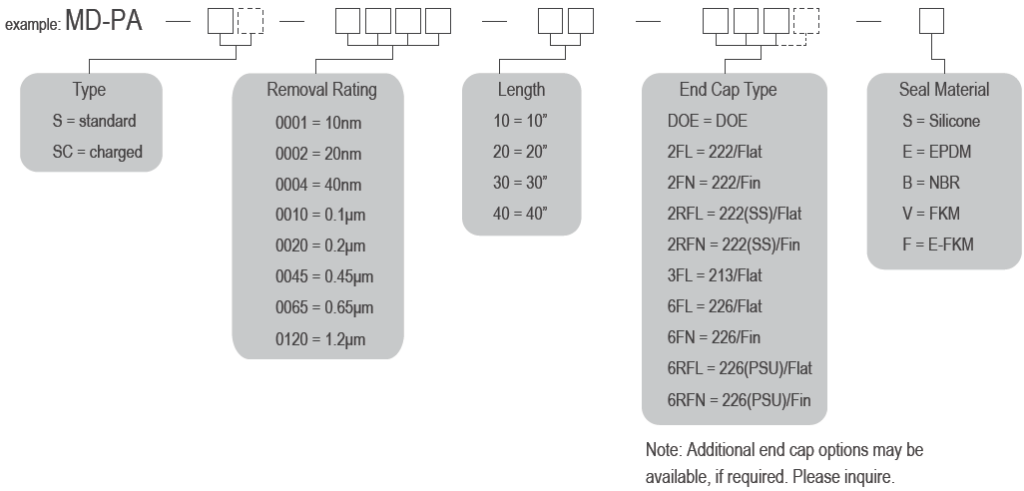

Ordering Information
