E-DS standard series
E-DSE encapsulated series
Endoer E-DS series depth-stack filter sheet media cartridges provide highly efficient clarification in biopharmaceutical, cosmetic, and food/beverage processing.
The dual separator construction provides support and stability to prevent deformity while in use and during hot water sanitization. Rigid external clips allow ease of handling and prevent damage during loading & unloading steps. Available in a broad range of ratings.
The E-DSE series features a robust encapsulated construction allowing modules to be backwashed,removing accumulated solids.This prolongs life of the module and reduces operational costs.
Component materials comply with US FDA and EU regulations for safe use with food products and potable water.
Features
- Durable and inert polypropylene hardware components
- Controlled back-washing allows extended life
- Easy & reliable handling
- Tolerates hot water sanitization
Applications
- Beer, wine, juices, dairy products
- Food products & ingredients
- Edible oils, sugars
- Blood products, vaccines, antibiotics
- Perfumes, lotions, shampoos, deodorants
Product Quality
- Produced in a clean-room environment for product purity & cleanliness.
- Manufactured within an ISO 9001:2015 certified quality management system
- Each filter element is inspected for compliance with requirements for manufactured cartridge integrity.
- Plastic components meet Biological Reactivity Test requirements of USP <88> for Plastics Class VI-121°C.
Materials of Construction
| Media | Cellulose fiber, diatomaceous earth, resin |
| Cage; End Caps | Polypropylene |
| Seal Options | Silicone(standard), NBR, EPDM, FKM |
Dimensions
| Diameter | 12", 16" |
| Cell Qty | 12, 15, 16 |
Operating Conditions
| Operating Temperature | 80°C (176°F) max. |
| Change-Out dP | 2.6 bar (38 psi) @ 20°C (68°F) |

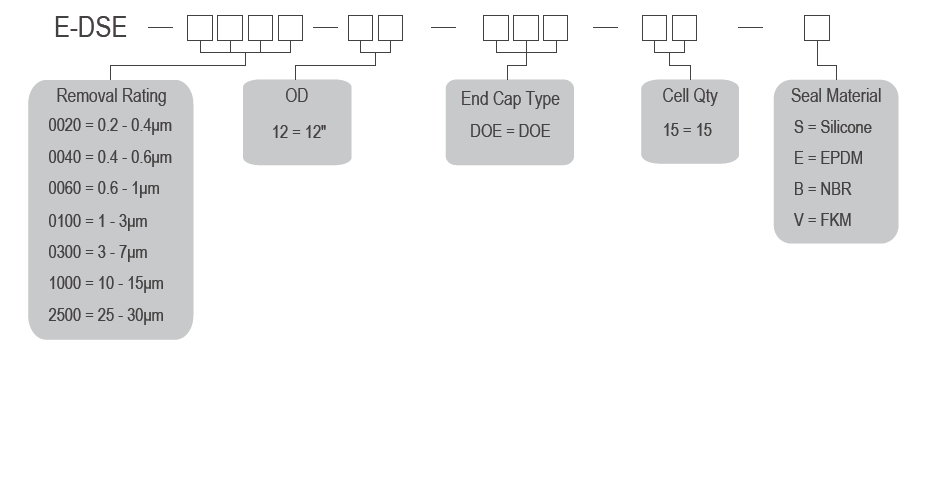

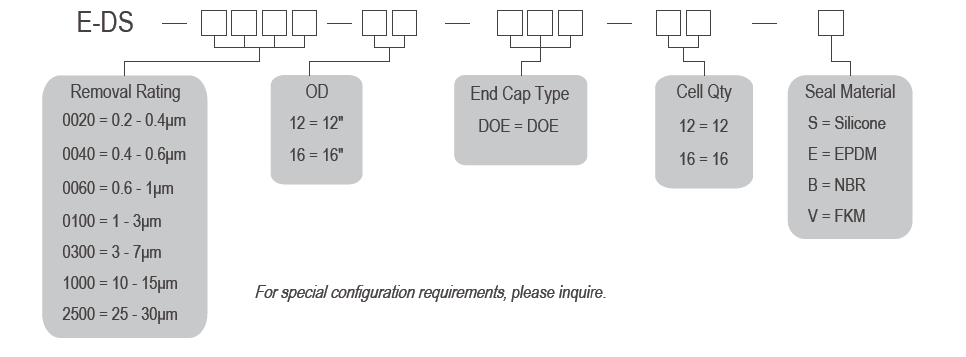

Ordering Information
