E-DSC Series Depth Stack Media Filter Cartridges with Activated Carbon

E-DSC Series Depth Stack Media Filter Cartridges with Activated Carbon

Endoer E-DSC series depth-stack filter sheet media cartridges provide highly efficient clarification in cosmetics, bio-pharmaceuticals, and food/beverage processing plus the absorptive performance of activated carbon. Provides ...

Endoer E-DSC series depth-stack filter sheet media cartridges provide highly efficient clarification in cosmetics, bio-pharmaceuticals, and food/beverage processing plus the absorptive performance of activated carbon. Provides decolorization, reduction of free chlorine, oils, organic compounds, and residual catalysts. The dual separator construction provides support and stability to prevent deformity while in use and during hot water sanitization. Component materials comply with US FDA and EU regulations for safe use with food products and potable water.

Features

  • Activated carbon removes the need to handle bulk powdered carbon.
  • Easy & reliable handling
  • Tolerates hot water sanitization

Applications

  • De-colorization of cannabis oils
  • Catalyst scavenging
  • Reduction of free chlorine and odors
  • Reduction of oils and organic compounds

Product Quality

  • Produced in a clean-room environment for product purity & cleanliness.
  • Manufactured within an ISO 9001:2015 certified quality management system.
  • Each filter element is inspected for compliance with requirements for manufactured cartridge integrity.
  • Plastic components meet Biological Reactivity Test requirements of USP <88> for Plastics Class VI-121°C.

Materials of Construction

Media:Cellulose fiber, activated carbon, resin
Core; Supports:Polypropylene
Seal Options:Silicone, NBR, EPDM, FKM

Dimensions

Diameter:10", 12", 16"
Cell Qty:9, 12, 15, 16

Operating Conditions

Operating Temperature:80°C (176°F) max.
Change-Out dP:2.0 bar (30 psi) @ 20°C (68°F)

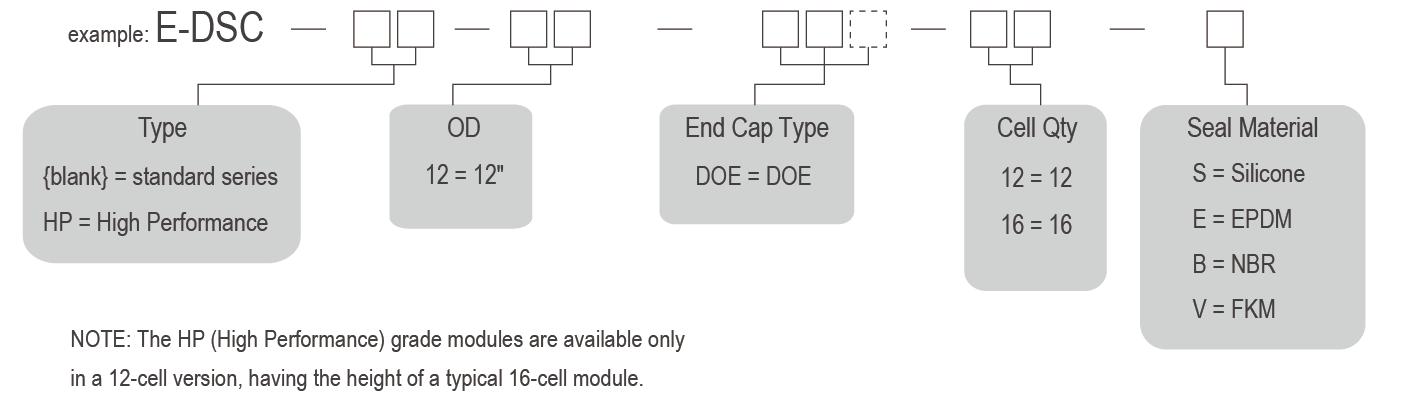

Ordering Information
