E-EMBPP Series Melt-Blown Polypropylene Microfiber Graded Density Filter Cartridges – Ultimate Economy
Endoer E-EMBPP series melt-blown polypropylene (PP) microfiber graded density cartridges provide the most economical performance for micronic retention of particulate in high-purity fluid filtration applications.
Polypropylene...
Endoer E-EMBPP series melt-blown polypropylene (PP) microfiber graded density cartridges provide the most economical performance for micronic retention of particulate in high-purity fluid filtration applications.
Polypropylene's inherent inertness provides excellent resistance to chemicals.
Offered in pallet quantities and DOE ends only for the ultimate in economy.
Features
- Ultra clean, highly purified carbon prevents sulfur leaching.
- Resistant to chemical breakdown in acidic and alkaline solutions.
- Gaskets permanently molded onto end-caps to prevent dislodging.
- 66mm outer diameter fits all standard housings used in the plating industry.
- The unique structure delivers low pressure drop.
- Highly efficient, providing 90%+ particulate retention.
Applications
- Plating solutions
- Surface finishing treatment baths
- Process water
Product Quality
- Manufactured within an ISO 9001:2015 certified quality management system
- Certificate of Quality available upon request for each product lot.
Materials of Construction
| Media | Bonded Powdered Activated Carbon |
| End Caps Core | Polypropylene |
| Post-Filter Layer | Polypropylene,Melt-Blown |
| Netting | Polypropylene |
| Gaskets | Thermoplastic elastomer |
Dimensions
| Body Diameter | 66mm(2.6") |
| Lengths | 9.75”, 9.88", 20”, 30”, 40” |
Operating Conditions
| Operating Temperature | 140°F(60°C)max. |
| Change-Out dP | 2bar(30psij@20°℃(68F) |
Dimensions (mm)

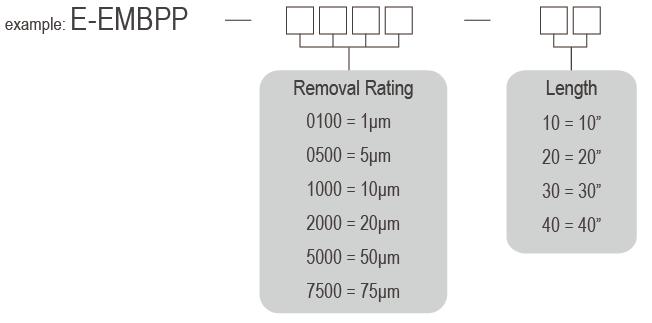

Ordering Information
Note: Additional materials of constuction may be available. Please inquire.
