E-EPP Series Polypropylene Pleated Depth MediaFilter Cartridges, 66mm, 69mm OD
Endoer E-EPP series polypropylene (PP) pleated microfiber media cartridges provide efficient micronic and submicronic retention of particulate in highpurity fluid filtration applications. Manufactured in continuous lengths of 20", 30", and 40" for improved economy. Available in a wide range of design retention efficiency ratings.They offer fine flow permeability and a high contaminant capacity with superior chemical resistance. The 66mm (2.60") OD option is most economical and allows proper fit in housings with closer spacing. Component materials comply with US FDA and EU regulations for safe use with food products and potable water.
Retention Level Options
Select from four levels of design efficiency to deliver the desired balance between retention, service life, and economy.
- Absolute+ / 99.98% for maximized retention
- Absolute / 95%
- Nominal / 80%
- Water Grade / 60% for maximized life and economy
Features
- Durable and inert polypropylene media & components
- Fine porosity delivers excellent retention
- Superior fluid compatibility
- Thermally-bonded construction for cartridge integrity
- Continuous-length construction offers economy
- 66mm OD option fits housings with tighter spacing
Applications
- Beer, wine, distilled spirits, bottled water
- Food products & ingredients
- RO prefiltration
- Process water; wastewater
- Fine chemicals
Product Quality
- Produced in a clean-room environment for product purity & cleanliness.
- Manufactured within an ISO 9001:2015 certified quality management system
- Each filter element is inspected for compliance with requirements for manufactured cartridge integrity.
- Plastic components meet Biological Reactivity Test requirements of USP <88> for Plastics Class VI-121°C.
Materials of Construction
| Media | Polypropylene |
| Support Layers | Polypropylene |
| Cage/Core/End Caps | Polypropylene |
| Adapter Reinforcement | Polysulfone or stainless steel |
| Seal Options | Silicone, NBR, EPDM, FKM, E-FKM |
Dimensions
| Diameter | 66mm (2.60"), 69mm (2.72") |
| Lengths | 20”, 30”, 40” |
Operating Conditions
| Operating Temperature | 80°C (176°F) max. |
| Operating dP (max.) | 4 bar (58 psi) @ 20°C (68°F) 2 bar (29 psi) @ 80°C (176°F) |
| Change-Out dP | 2.6 bar (38 psi) @ 20°C (68°F) |
Series Options
- E-EPP-X.69mmOD
- E-EPP-S…66mm OD for housings with close spacing
- E-EPP-W…Water grade 66mm OD with reduced EFA for maximum economy
Clean Pressure Drop
Flow rate versus dP values are shown for 10"length versions of A"rated products.Approximations for other grades are:
AA"rated products will have 20%-40%higher dP for a given flow rate.
"N"and "W"grades will have 20%-40%lower dP for a given flow rate.
For cartridges of lengths other than 10,the flow rate at a given dP will increase proportionally to the length.

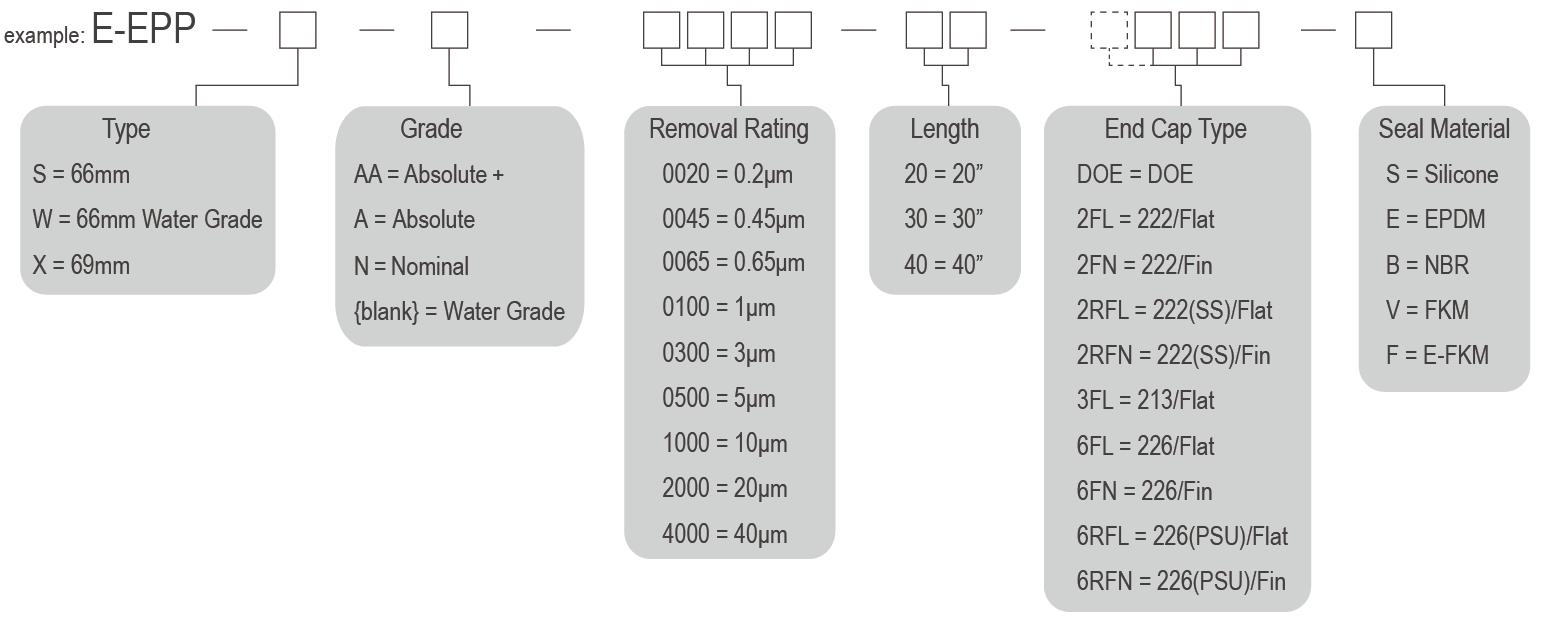

Ordering Information
Note:Additional end cap options may be available,if required.Please inquire.
