Endoer E-PE series polyester pleated depth media cartridges provide efficient micronic and submicronic retention of particulate in applications with operating temperatures up to 113°C (235°F). They are an ideal choice when the chemical or heat tolerance of polyester is needed. Available in a wide range of absolute and nominal ratings.Available optionally with micro-fiberglass media.
Offered in a wide range of absolute and nominal ratings. They offer fine flow permeability and a high contaminant capacity. Component materials comply with US FDA and EU regulations for safe use with food products and potable water.
Features
- Durable polyester media & components
- Fine porosity delivers excellent retention
- Thermally-bonded construction for cartridge integrity
- Produced under clean-room conditions for product purity
Applications
- Hydrocarbons, solvents
- Produced water
- Fine chemicals
- Metal plating solutions
Product Quality
- Clean room manufacturing environment supports product purity
- Manufactured within an ISO 9001:2015 certified quality management system
- Each filter element is inspected for compliance with requirements for manufactured cartridge integrity.
Materials of Construction
| Media | PBT Polyester (1) |
| Support Layers | PET Polyester |
| Cage/Core/End Caps | PBT Polyester |
| Seal Options | Silicone, NBR, EPDM, FKM, E-FKM |
Dimensions
| Diameter | 69mm (2.72") |
| Lengths | 10”, 20”, 30”, 40” |
Operating Conditions
| Operating Temperature | 113°C (235°F) max. |
| Operating dP (max.) | 4 bar (58 psi) @ 20°C (68°F) 2 bar (29 psi) @ 80°C (176°F) |
| Change-Out dP | 2.6 bar (38 psi) @ 20°C (68°F) |
Clean Pressure Drop
Pressure drop values are based on a 10"length cartridge
For other cartridge lengths,the flow rate increases proportionally for a given pressure drop.
For data on configurations not shown,please speak with your Endoer representative.

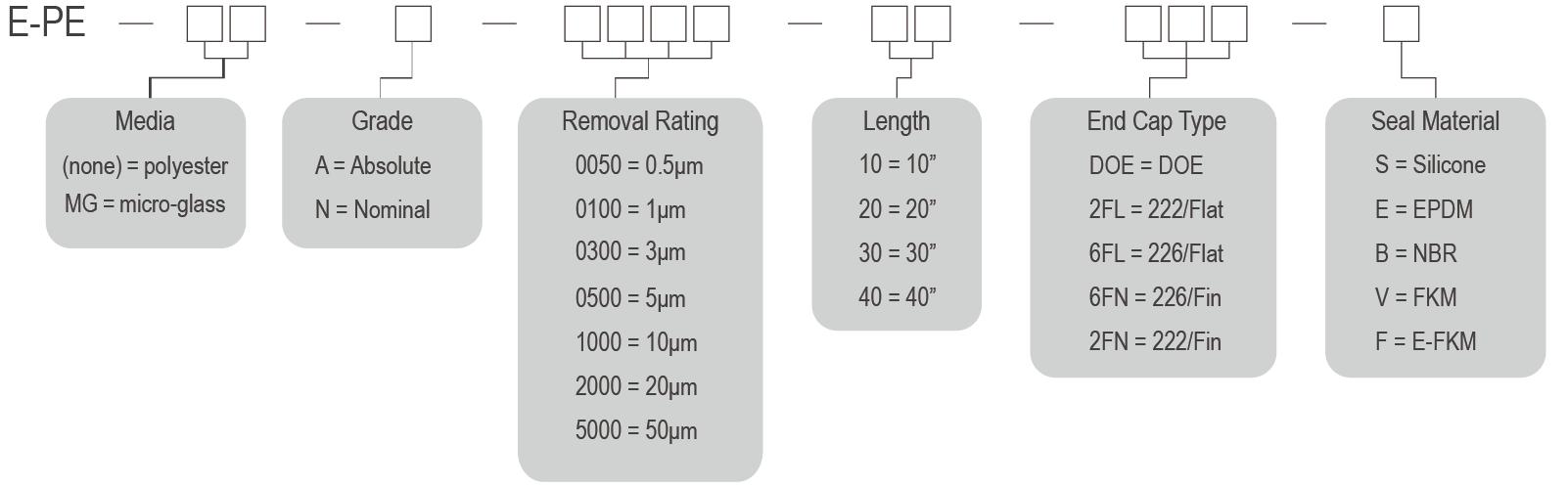

Ordering Information
Note:Additional ratings and end cap options may be available,if required.
Please inquire.
