E-PEP series polyester pleated depth media cartridges

E-PEP series polyester pleated depth media cartridges

Endoer E-PEP series polyester pleated depth media cartridges provide efficient micronic retention of particulate in applications with operating temperatures up to 38°C (100°F). They are a fine choice when the need is for an eco...

Endoer E-PEP series polyester pleated depth media cartridges provide efficient micronic retention of particulate in applications with operating temperatures up to 38°C (100°F). They are a fine choice when the need is for an economical cartridge that can be cleaned and re-used. The pleated construction offers much greater filter area than string wound or melt-blown cartridges. Available in a wide range of ratings. Component materials comply with US FDA and EU regulations for safe use with potable water.

Features

  • Durable & cleanable polyester media
  • Finely porous with high dirt-holding capacity
  • The best economy available in a pleated construction
  • An excellent choice for non-critical applications

Applications

  • RO pre-filtration; drinking water
  • Process water; cooling water
  • Waste water
  • Plating solutions

Product Quality

  • Manufactured within an ISO 9001:2015 certified quality management system

Materials of Construction

Media:PET Polyester; Polypropylene
End Caps:Polyurethane
Core:Polypropylene

Dimensions

Diameter:68mm (2.68"); 115mm (4.5")
Lengths:9.75", 9.88", 10”, 20”, 30”, 40”

Operating Conditions

Operating Temperature:38°C (100°F) max.
Operating dP (max.):3.0 bar (45 psi) @ 20°C (68°F)
Change-Out dP:2.0 bar (30 psi) @ 20°C (68°F)

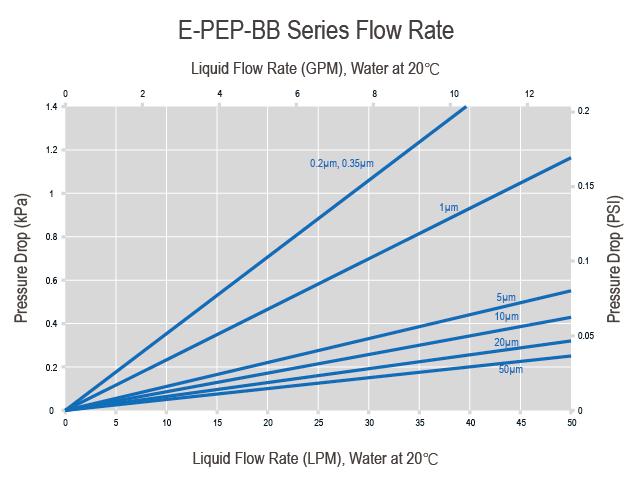

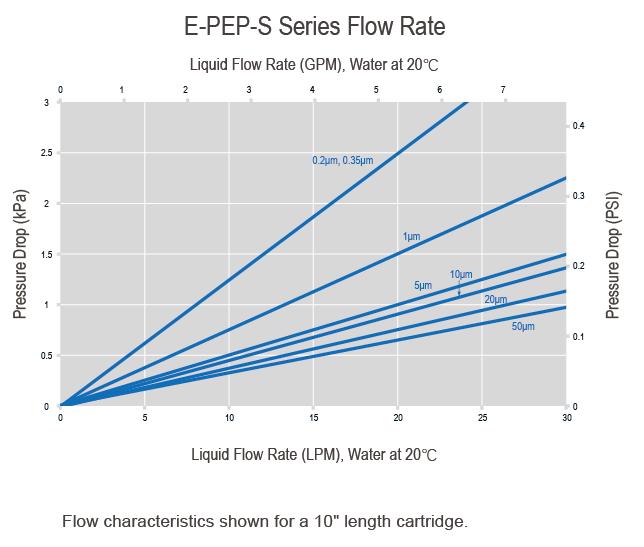

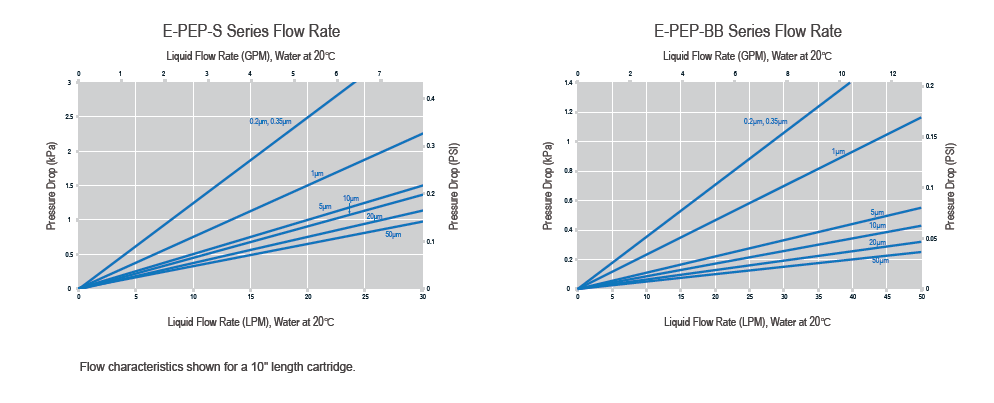

Clean Pressure Drop

Ordering Information
