E-PPHSG Series Single Cartridge High-Purity Natural Polypropylene Filter Housing
Constructed of 100% natural, virgin polypropylene homopolymer for all wetted surfaces to provide a high degree of chemical tolerance in sensitive applications. No fillers or colorants are used which can otherwise contribute ext...
Constructed of 100% natural, virgin polypropylene homopolymer for all wetted surfaces to provide a high degree of chemical tolerance in sensitive applications. No fillers or colorants are used which can otherwise contribute extractable substances. A ring nut closure provides a secure seal and ease of servicing. Accepts 10" and 20" nominal length 222/FLAT and 226/FLAT configured cartridges. Provides the excellent chemical compatibility for which polypropylene is known.
Features
- Tolerance to acids, bases, and organic compounds.
- Non-restrictive fluid flow.
- Pure, virgin polypropylene homopolymer minimizes potential for extractable substances
- 1/4"FNPT vent and drain ports
Applications
- Critical process fluids in micro-electronics and semiconductor manufacturing
- Laboratory water and ultra-high purity water requiring the low extractable substances
Product Quality
- Manufactured within an ISO 9001:2015 certified quality management system
- Inspected, qualified, and packaged in a clean room environment.
- Certification of Quality document provided upon request
Dimensions
Materials of Construction
| Head, Sump: | Virgin Natural Polypropylene Homopolymer |
| Ring Nut: | Polypropylene, Glass-Filled |
| Seal Options: | FKM, silicone, EPDM |
Operating Conditions
| Operating Temp., Max: | 45 psi (3 bar) at 66°C (150°F) 100 psi (6.8 bar) at 25°C (77°F) |

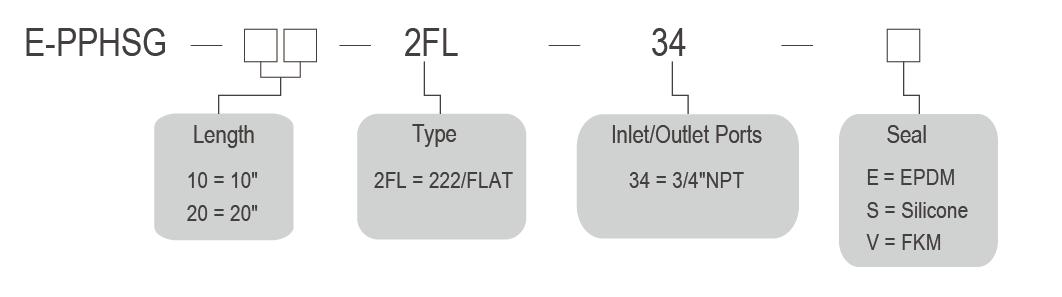

Ordering Information
