Endoer's PTFE-H series hydrophilic polytetrafluoroethylene (PTFE) pleated filter cartridges provide highly efficient micronic and submicronic retention along with PTFE's extraordinary chemical resistance. Designed for filtration of high-purity aqueous solutions fluids requiring ultra-low levels of extractable substances and low protein binding performance. Hydrophliic PTFE membrane also allows for easy wetting with aqueous solutions.
Cartridges are 100% inspected for manufacturing integrity to assure retention performance.
Features
- Hydrophilic PTFE membrane allows easy wetting.
- Superior grade PTFE membrane offers the highest degree of consistent performance.
- Superior chemical compatibility.
Applications
- High-purity aqueous solutions
- Ophthalmic solutions requiring low protein binding
- Food & beverage applications desiring the most inert membrane option available.
- Critical pharmaceutical and bio-tech applications demanding the lowest levels of extractable substances.
Product Quality
- Each membrane filter element is individually inspected for manufacturing integrity.
- Individual elements are tracked by serial number.
- Produced in a clean-room environment for product purity & cleanliness.
- Manufactured within an ISO 9001:2015 certified quality management system.
- Certificate of Quality document is provided with each production lot.
Materials of Construction
| Media: | Hydrophilic PTFE |
| Support Layers: | Polypropylene |
| Cage/Core/End Caps: | FKM, silicone, NBR, EPDM |
| Seal Options: | Silicone, NBR, EPDM, FKM, E-FKM |
Dimensions
| Diameter: | 69mm (2.72") |
| Lengths: | 10”, 20”, 30”, 40” |
Operating Conditions
| Operating Temperature: | 80°C (176°F) max. |
| Operating dP (max.): | 4 bar (58 psi) @ 20°C (68°F) 2 bar (29 psi) @ 80°C (176°F) |
| Change-Out dP: | 2.6 bar (38 psi) @ 20°C (68°F) |
Clean Pressure Drop

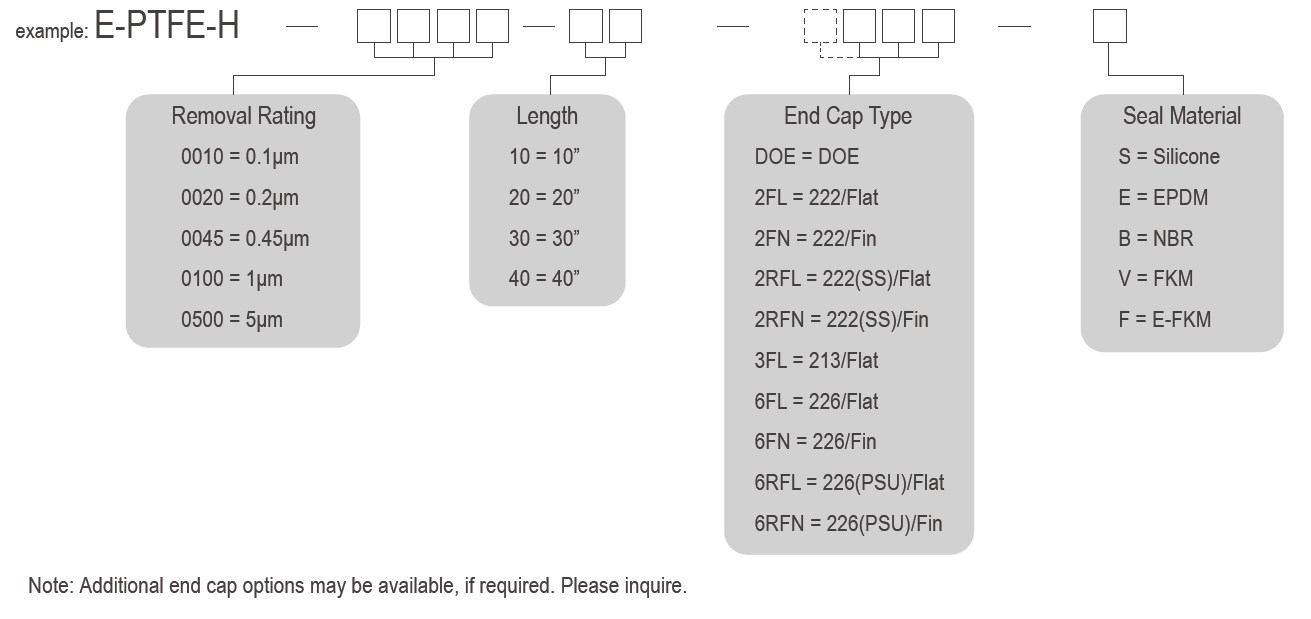

Ordering Information
