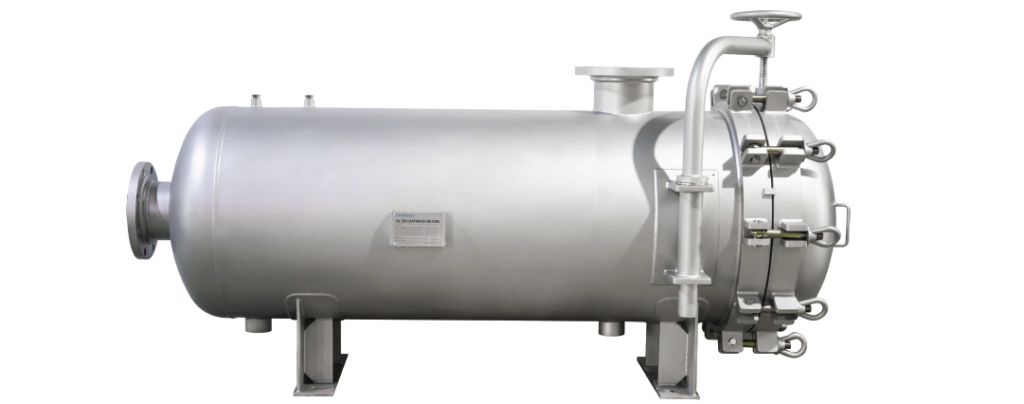

E-SBHFH Series “High-Flow”Liquid Filter Housings w/Swing Bolt Closure-Horizontal
Manufactured of AIS1304 or AISI316L stainless steel,these horizontally-oriented single-cartridge housings accept Pall-type high-flow filter cartridges in 40" and 60"lengths.The swing-bolt closure provides ease of servicing and ...
Manufactured of AIS1304 or AISI316L stainless steel,these horizontally-oriented single-cartridge housings accept Pall-type high-flow filter cartridges in 40" and 60"lengths.The swing-bolt closure provides ease of servicing and safe operation.Common industrial applications include:food beverage production, chemical refinery processes,oil gas,water filtration,pulp&paper,metal finishing,and power generation.They're a standard choice to support higher flow rate applications with abundant options for cartridge media and retention ratings.
Features
- Rugged swing-bolt closure allows easy access for cartridge changes.
- Strengthened,welded legs provide a stable and durable installation.
- 150 psi(10 bar)operating pressure rating.
- Designs adhere to requirements of the ASME Pressure Vessel Code. "U"and "CE"Code stamping options are available.

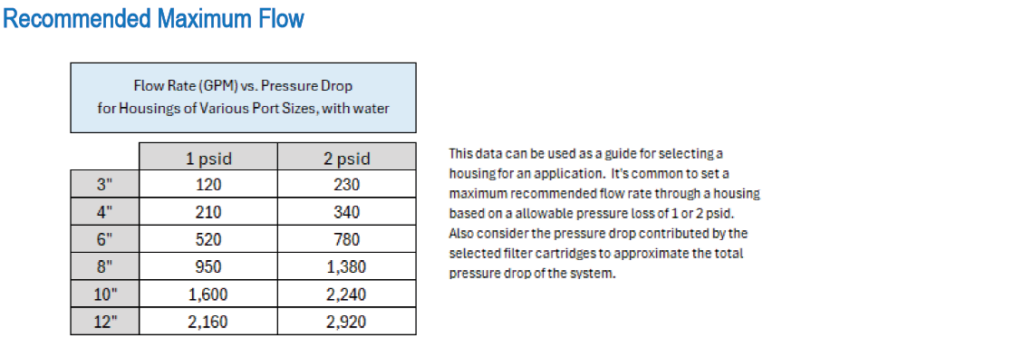

- Can support flow rates to 600 GPM.
- Surface passivation reduces potential for weld line corrosion.
Applications
- Suitable for the broadest range of industrial applications from process fluid streams for water,aqueous solutions,oils,and fine chemicals.
- Used in food and beverage production:filtration of juices,syrups,food ingredients,and bottled water.
Product Quality
- Manufactured within an ISO 9001:2015 certified quality management system.
- Certification of Quality document can be provided upon request.
Materials of Construction
| Shell Components | AISI304 or AISI316L Stainless Steel |
| Seal Options | EPDM (standard) SILICONE, EPDM, NBR |
Surface Finish
| Surface Quality | Glass beaded finish is standard Industrial electropolish is option |
Operating Conditions
| Operating Temperature | 121°C (250°F) max. |
| Design Pressure | 10 bar (150 psi) |

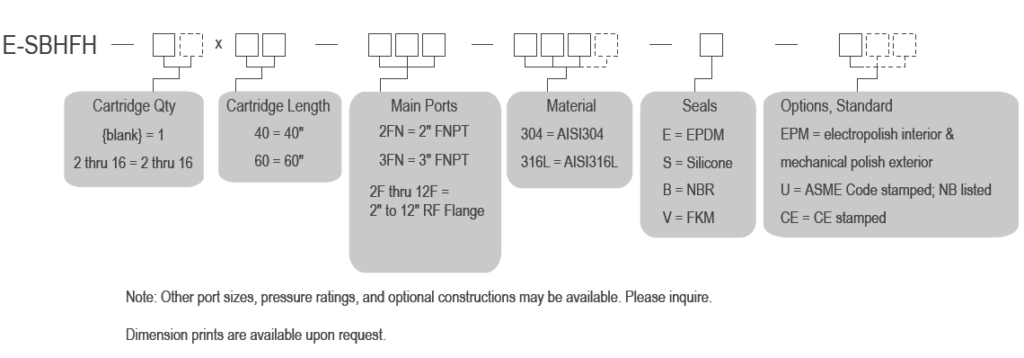

Ordering Information
Note:Other port sizes,pressure ratings,and optional constructions may be available.Please inquire.
Dimension prints are available upon request.
