MicroDoes PA-PE Series nylon 66(PA)pleated filter cartridges provide micronic and submicronic particulate retention for specific use in the microelectronics manufacturing industry.To provide the lowest possible level of extractable substances,this series is constructed of high-density polyethylene for the molded cage,core,and adapters,and,receives an extended rinse with 18M-ohm ultra-pure water.
Being naturally hydrophilic,these cartridges allow for fast and easy wetting in aqueous fluids.The optional positive zeta potential surface charge allows retention of particulate much finer than the stated rating.

Features

• Durable nylon membrane and polyethylene components
• Naturally hydrophilic for fast easy wetting
• "Z"surface charge option improves retention of haze, colloids.and endotoxins
• Extended UPW rinse for purity and cleanliness

Applications

• Ultra-high purity water systems
• Electronics rinse water
• Resin trap filter

Product Quality

• Individual elements are identified by serial number.
• Produced in a clean-room environment for product purity & cleanliness.
• Manufactured within an ISO 9001:2015 certified quality management system.
• Each filter element is inspected for compliance with requirements for manufactured cartridge integrity.

Materials of Construction

Dimensions

Operating Conditions

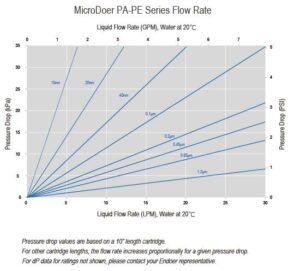

Clean Pressure Drop

Effluent Quality

Extractable metal ions,29 species	<5 ppb
Extractable particles ≥30nm	<200/ml
Extractable TOC	<20 ppb
Non-Volitile residue	<20mg

See Product Guide for additional test and performance details.

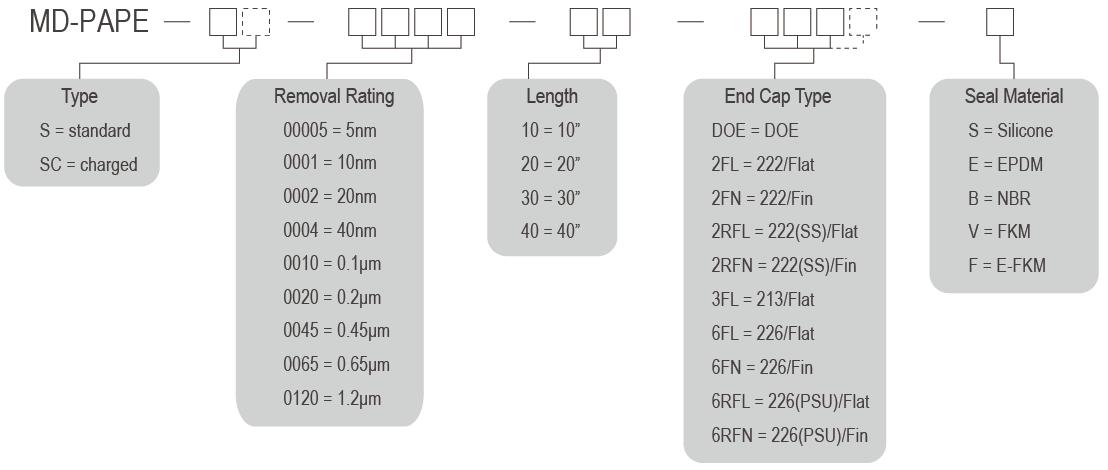

Ordering Information

Note: Additional end cap options may be available, if required. Please inquire.
